Guitar Pickup Anatomy: The 3 Components & Their Function

Understanding guitar pickup anatomy helps in grasping how an electric guitar functions to create its distinctive sound. A guitar pickup translates the vibrations of the guitar strings into electrical signals, which are then amplified and converted into sound through a speaker. Essentially, these pickups are the heart of an electric guitar’s tonal characteristics and play a significant role in defining its voice. Whether you are a seasoned guitarist or a curious enthusiast, knowing about these components can deepen your appreciation for the instrument and even inform your future guitar choices.

At its core, a pickup consists of magnets and coils of wire, and it’s the interaction between these components and the guitar strings that generates the signal. The magnets create a magnetic field around the strings, and when you pluck a string, its vibration disrupts this magnetic field. This disturbance induces an electric current in the coils, which mirrors the vibration of the string—a process known as electromagnetic induction. There are different types of pickups, such as the single-coil and the humbucker, each offering unique tonal qualities due to their construction and the way they interact with the strings.

The evolution of pickups has been marked by significant innovations since the early 20th century, shaping the direction of modern music. For instance, the P-90 pickup, created by Gibson, established a new tonal palette versus Fender’s single-coil designs. The advancements in pickup technology have not only influenced the genres of rock, blues, and jazz but have also allowed musicians to explore new frontiers in sound. As you delve into the world of electric guitars, these transducers will often be a topic of interest and discussion, highlighting the intricate relationship between technology and artistry in music.

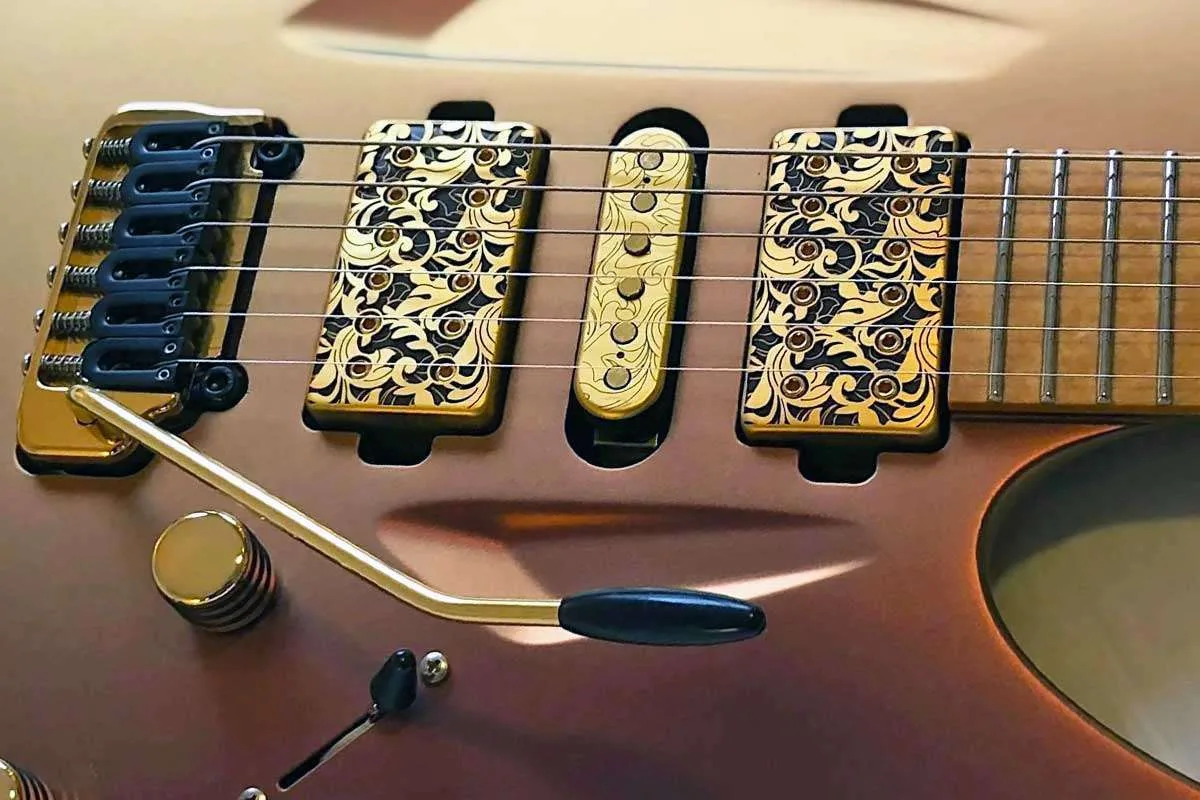

Guitar Pickup Anatomy The 3 Components & Their Function

The Basic Components of a Pickup

In your electric guitar, pickups are essential for converting string vibrations into an electrical signal that your amplifier can turn into sound. Understanding the basic components of a pickup can deepen your appreciation of its role in your music.

Related: The Anatomy of an Electric Guitar


The magnet creates a stable magnetic field across the strings. This field is crucial because when you pluck the strings, their vibrations disrupt this field, a fundamental step in the process of sound production.


Wrapped around the magnet is a coil of wire, usually made of copper. The number of windings can greatly influence the output and tone of the pickup.


The bobbin serves as the coil’s structure, keeping the wire neatly wound and protected. Materials like plastic or fiber can be used for bobbin construction, contributing to the pickup’s durability.

Types of Pickups

  • Single Coil Pickups: These have a single coil of wire and are known for their bright, clear sound.
  • Humbucker Pickups: They have two coils of wire, reducing hum and noise, and providing a warmer tone.
  • P-90 Pickups: These are a type of single coil that offers a hotter output and fuller tone, distinguishing them from traditional single coils.
  • PAF Pickups: The original humbucker designed by Gibson in the 1950s, known for their warm, vintage tone and dual-coil hum-canceling feature.
  • Active Pickups: Equipped with a battery-powered preamp, they boost the signal and can shape the tone.
  • Passive Pickups: These rely solely on the magnets and coils for their output and are common in many guitars.


Materials used can have a significant effect on the quality and character of the sound produced by the pickups. Choices in magnet type (such as Alnico or Ceramic), wire gauge, and bobbin composition are all part of this equation.

Remember, the combination of these parts and the design of the pickup influence not just the volume but the tonal character of the electric guitar. When you’re playing, each component plays its part to deliver your music through the amplifier, from the initial vibrations to the sound that fills the room.

Design & Construction

In the realm of electric guitars, the design and construction of pickups have a remarkable influence on the instrument’s tone and performance. This section sheds light on the intricate aspects of pickup design, the materials involved, and how they’re assembled to capture the string vibrations as electrical signals.

Magnetic Materials

The heart of any guitar pickup is the magnet, which serves as the source of the magnetic field that interacts with the steel strings. Two main types of magnets are commonly used in pickup construction: Alnico and ceramic.

Alnico magnets, made from an alloy of aluminum, nickel, and cobalt, have been featured prominently in pickups since the 1950s. Known for their warm, vintage tone, they come in various grades, such as Alnico 2, Alnico 5 and Alnico 8, each with distinct magnetic properties and tonal characteristics.

Ceramic magnets, made from hardened barium or strontium ferrite, offer a brighter, more edgy sound. They tend to be less expensive than Alnico and are often found in modern, high-output pickups.

Pickup Bobbins and Winding Process

Pickup bobbins provide the structure around which the copper wire coil is wound. Traditionally, bobbins were made of materials like nylon or plastic, chosen for their insulating properties and durability. The winding process, involving the wrapping of thousands of turns of thin copper wire around the bobbin, is crucial for the pickup’s characteristics.

The wire gauge and the number of windings greatly impact the pickup’s output and tone. Insulation, often of a thin layer of enamel, is imperative to prevent short-circuits within the coil of wire. Precision in the winding process is key, as uneven or sloppy windings can lead to undesired tonal outcomes and microphonic feedback.

Pole Pieces and Their Function

Pole pieces are an integral part of the pickup design, serving as the points of magnetic focus and transference of string vibrations to the magnetic field. They can be individual steel pole pieces, directly magnetized or non-magnetized and influenced by a bar magnet below.

The configuration of the pole pieces—such as their spread and alignment with the strings—affects the clarity and definition of the sound produced. Magnetized pole pieces contribute to the overall magnetism of the pickup, while steel or other metal pole pieces tend to focus the magnetic field from the underlying bar magnet onto the strings above. They are instrumental in defining how the magnetic field interacts with the strings, thus sculpting the final tonal quality captured by the pickup.

Position & Mounting

The position of a pickup on an electric guitar significantly influences the output and tone. Where you mount the pickup in relation to the strings—whether close to the neck, in the middle, or near the bridge—alters the sound characteristics dramatically.

The Impact of Pickup Placement

The neck position pickup sits at the end of the guitar’s neck closest to the nut and produces a warm and rich tone due to the area’s larger string vibrations. In contrast, the bridge position pickup, located near the guitar’s bridge, captures the tighter vibrations yielding a brighter and more piercing sound.

For instance, the iconic twang of a Fender Telecaster is partly due to its sharp-sounding bridge pickup, while the full, warm sound often associated with Gibson Les Paul models owes much to the neck pickup’s deeper output. Your switching between these positions allows for a versatile playstyle, coaxing a wealth of tones from your instrument.

Mounting Variations & Their Effects

Mounting methods vary across guitar models and can affect tone and playability. On some guitars, the pickup is directly mounted to the guitar’s body, which can enhance sustain by transferring more string vibration energy directly into the wood.

On other models, the pickups are suspended from the pickguard or attached to the guitar’s top. This can lead to slight differences in acoustic resonance and sustain. For example, the traditional mounting on a Les Paul involves securing the pickup to the top of the guitar, potentially emphasizing the body’s natural resonance, while a Fender Telecaster usually features pickguard-mounted pickups, which some believe offers a snappier response.

The mounting variations, including the use of rubber or springs for height adjustment, vastly influence your ability to personalize your guitar’s tone. A well-adjusted pickup height, keeping in mind the string’s magnetic pull, becomes a sweet spot for both output and tone quality—too high can cause distortion, and too low may result in a weak signal.

Frequently Asked Questions

In this section, you’ll find detailed answers to some of the most commonly asked questions about guitar pickups, helping you understand the nuances of their design and the impact they have on your guitar’s sound.

How do different types of guitar pickups affect tone?

Different types of guitar pickups, such as single coils and humbuckers, have distinct structures that generate characteristic tones. Single coils are known for their bright and crisp sound, while humbuckers typically offer a fuller and warmer tone with less interference from electrical hum.

What is the difference between single coil and humbucker pickups?

Single coil pickups consist of one coil of wire wrapped around magnetic pole pieces, producing a sharp and clear sound. Humbucker pickups, on the other hand, utilize two coils wired in opposite directions to cancel out electromagnetic interference or “hum”, resulting in a thicker, richer tone compared to single coil pickups.

What are the main parts of an electric guitar pickup?

An electric guitar pickup is primarily made up of magnets, coils of wire, and a bobbin. The magnets generate a magnetic field, which is disturbed by the vibrating strings, and the coils of wire convert this disturbance into electrical signals. This principle allows the pickup to capture and transmit the nuances of your playing.

How does pickup configuration impact guitar sound?

Pickup configuration refers to the number and arrangement of pickups on a guitar. Different configurations offer varying sound options, with the most common being single, double, and triple pickup setups. The configuration not only influences the tonal variety but also the versatility of the guitar in producing different genres of music.

Can you explain the role of magnets in guitar pickups?

Magnets are crucial in guitar pickups as they create the magnetic field needed to detect string vibrations. The type of magnet used, such as Alnico or Ceramic, affects the pickup’s tonal characteristics, with Alnico magnets typically yielding a warmer sound and Ceramics providing a brighter tone.

How do pickup selections switch affect the sound of an electric guitar?

Pickup selector switches enable you to activate different pickups either independently or in combination, drastically changing your electric guitar’s sound. By altering the activated pickups, you can achieve sounds ranging from sharp and twangy (bridge pickup) to rich and full-bodied (neck pickup), making your guitar suitable for a wide variety of musical styles.
