How To Bias a Tube Amp: Essential For Optimal Performance

When you decide to bias a tube amp, you’re embarking on a critical task that can significantly influence your amp’s performance, tone, and longevity. Biasing involves adjusting the amount of current that flows through a tube in its idle state and has a direct impact on its operation and sound quality. It’s an essential procedure for ensuring that the amplifier functions correctly and avoids damage to its circuit components. A properly biased tube amp will not only sound better but will also run more efficiently and last longer.

There are various methods for biasing tube amplifiers, and they depend on the type of amp you’re working with. In a Class A amplifier, for example, tubes are constantly amplifying the signal during the entire cycle, requiring careful bias adjustments to maintain the desired tone and avoid overheating. This contrasts with Class AB amplifier designs, where tubes are amplifying in alternation, thus demanding a different bias setting to optimize performance.

Understanding the technical aspects of your amplifier’s circuit design is crucial for accurate biasing. You can use devices like the Wombat™ for testing single-tube and two-tube amplifiers, enabling you to monitor the current each tube draws. Knowledge of your amp’s specific bias requirements and the ability to assess and adjust it can transform your sound’s quality from good to outstanding.

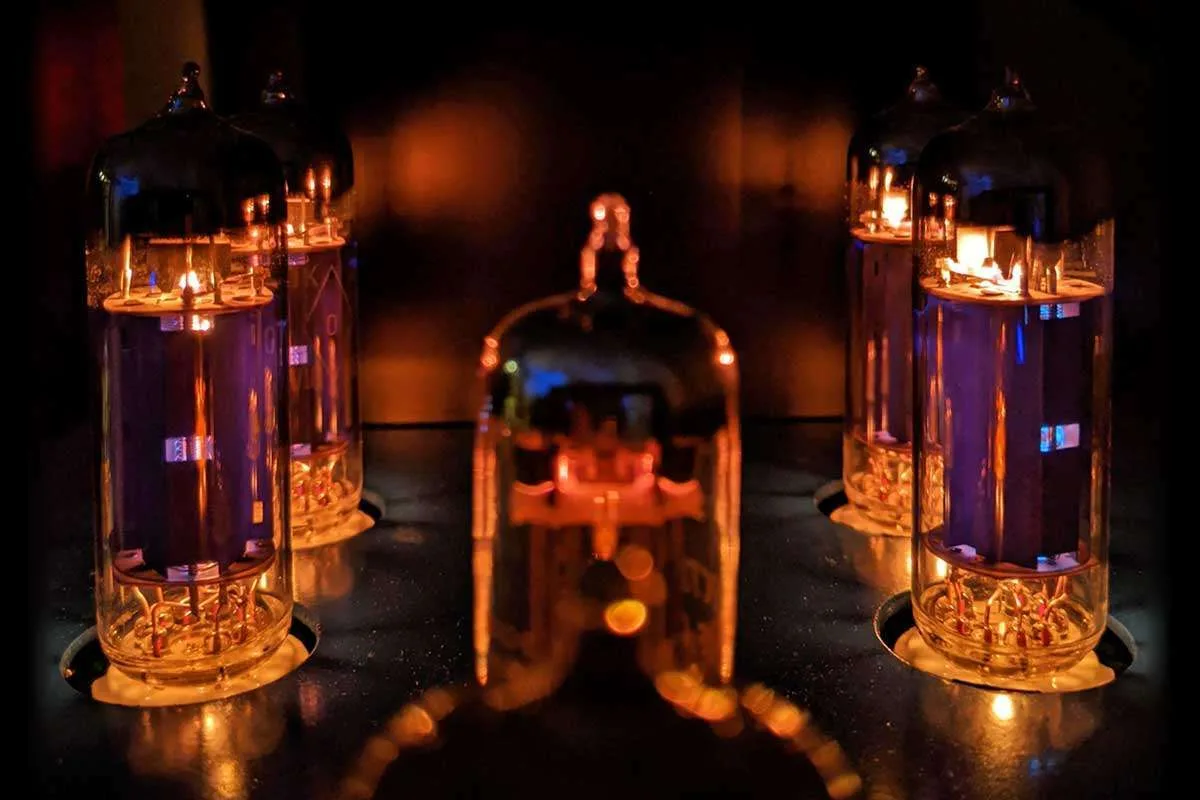

How To Bias a Tube Amp Essential For Optimal Performance

Understanding Tube Amp Bias

Biasing your tube amp is essential for optimal performance and sound quality. It involves the adjustment of current flow within the vacuum tubes to ensure they operate effectively.

The Role of Bias in Tube Amps

Bias is the term used to set the operating point of a vacuum tube in an amplifier. Proper biasing allows the tube to amplify the input signal without distortion. When your amp’s tubes are biased correctly, it reduces wear and tear, balancing between a tone-rich output and longevity of the tubes.

Related: Types of Guitar Amps

Types of Biasing: Fixed Bias vs. Cathode Bias

There are two main types of biasing techniques:

  • Fixed Bias: In this system, the term “fixed” doesn’t imply that the bias is unchangeable, but rather that the bias voltage is supplied from an external source and is separate from the cathode. To adjust a fixed bias, you usually need to access internal controls on the amplifier.

  • Cathode Bias: This self-biasing method allows the tube to automatically set its bias level. Here, the cathode is connected to a resistor and capacitor. Due to this configuration, cathode bias is simpler to maintain because it requires no manual adjustments.

The Impact of Bias on Tube Amp Performance

Biasing affects your amp’s overall sound character, and if set improperly, can lead to poor performance or even damage. An underbiased tube may sound weak and lifeless, whereas an overbiased tube can produce a harsh tone and may reduce the lifespan of the tube. Finding the right balance is crucial for maintaining optimal plate dissipation and achieving the desired tonal quality.

Tube Types and Their Bias Requirements

Different tube types—such as EL34, 6L6, or 6V6—each have unique bias requirements largely due to their plate dissipation ratings. For instance, an EL34 often requires a higher bias voltage compared to a 6V6. Always consult your amp’s manual or a professional for precise bias settings for your specific tube type.

By understanding and correctly implementing tube amp bias, you ensure the best performance and extended life for your tubes.

Technical Aspects of Biasing a Tube Amp

When you are looking to optimize the performance and prolong the life of your tube amp, understanding and accurately setting the bias is crucial. This involves a delicate balance of plate voltage, bias current, plate dissipation, and plate current.

Related: Tube vs Solid State Amps

Plate Voltage and Its Significance

Plate voltage is the electrical pressure behind the electron flow in the tube’s circuit. It’s key to achieving the desired tone and optimal amplifier operation. You’ll find that higher plate voltages can increase headroom, leading to a cleaner tone at higher volumes, but also stress your tubes more. On the contrary, lower voltages may result in a warmer sound but can cause a loss of definition.

Measuring Bias Current

The bias current is the amount of current flowing through the power tubes when there is no audio signal. To measure the bias current:

  1. Turn off and unplug your amp, and open the chassis.
  2. Locate test points or use a bias probe in series with the tube.
  3. Power on your amp and set to standby for several minutes.
  4. Measure the bias with a multimeter across the test points or probe.

Properly measuring this current ensures that the tubes are neither underpowered, which could make them sound weak, nor overpowered, which could lead to premature failure.

Calculating Plate Dissipation

Plate dissipation [Watts] is the product of plate current [mA] and plate voltage [Volts]. It represents the power used by the tube’s plate. Use a bias calculator to conveniently calculate this:

Plate Dissipation (Watts) = Plate Voltage (Volts) x Plate Current (mA) / 1000

Ensuring correct plate dissipation is vital to maintain the tubes’ longevity and overall sound quality.

Understanding Plate Current

Plate current, simply put, is the current that flows through the power tube’s plate. It is intrinsically linked with biasing, as it directly influences the tube’s operation point and the amp’s overall sound. The aim is to run your tubes at the sweet spot where they produce the best tone while avoiding excessive currents that could damage your amp.

Practical Guide to Biasing

Biasing a tube amp involves careful adjustment of current flowing through the tubes to ensure optimal performance and longevity. Mastery of this technique can enhance your amp’s sound and is crucial for maintaining your equipment.

Using a Multimeter for Biasing

When biasing your tube amp, a multimeter is an essential tool. Begin by setting your multimeter to measure DC voltage and locate the test points specified in your amp’s service manual. Place the probes on these points, typically on the tube sockets or the resistors leading to the power tubes, and take note of the voltage. This reading will guide you in adjusting the bias to the manufacturer’s recommended window.

Setting the Bias with a Trim Pot

Many modern tube amps come equipped with a trim pot, which allows for relatively simple bias adjustments. With your amp on and warmed up, turn the trim pot using a small screwdriver and observe the changes on your multimeter. Adjust it slowly until the meter reflects the target voltage. Always refer to your manual for the correct settings specific to your amp.

Adjusting Bias in Fixed and Adjustable Fixed Bias Amps

Fixed bias amps often require setting the bias by adjusting resistors inside the amp, a task usually best left to a professional. For adjustable fixed bias amps, you’ll use the trim pot, as mentioned previously, to calibrate the bias. Non-adjustable amps don’t provide this convenience and may need resistor changes to alter the bias. Always work within the manufacturer’s recommended settings to avoid tube damage.

Safety Precautions and Discharging Capacitors

Your safety is paramount when working on electronics. Always ensure your amp is unplugged and given time to cool down before you begin. Use a discharging tool to safely discharge electrolytic capacitors that can store lethal voltages even when the amp is off. Wear rubber-soled shoes, use insulated tools, and keep one hand behind your back when working on live circuits to minimize the risk of electric shock.

Troubleshooting Bias-Related Issues

Proper bias adjustment is crucial for the optimal performance of a tube amplifier. Incorrect bias can lead to diminished tube life and undesirable harmonic distortion. Here’s how you can troubleshoot these bias-related issues.

Symptoms of Incorrect Bias: Over-Biased and Under-Biased Conditions

Over-Biased Tubes:

  • Your amp may sound harsh or too bright.
  • Tubes can exhibit a red or orange glow on the plates.
  • There is an increased risk of tube failure.

Under-Biased Tubes:

  • Your amp might sound weak or lack punch.
  • Tubes run cooler than usual but with lessened dynamics.
  • You may notice an increase in harmonic distortion.

The Consequences of Bias Drift

Bias drift can occur gradually, affecting sound quality and reducing your amp’s overall efficiency. If not corrected, it can:

  • Shorten the lifespan of tubes significantly.
  • Lead to inconsistent audio performance and possible damage to amplifier components.
  • Cause a loss in the fidelity of the sound, making it less accurate to the intended output.

Using a Bias Probe for Troubleshooting

  • A bias probe helps measure the current running through the tube and is essential for accurate adjustments.
  • For bias adjustment, connect the bias probe according to the manufacturer’s instructions.
  • Compare the readings against the recommended bias settings for your specific amp model to determine if the tubes are over-biased or under-biased.
  • Adjust the bias by using the amp’s bias adjustment controls to bring the measurements within specification, ensuring optimal tube life and sound quality.

Optimizing Amplifier Performance

In the pursuit of exceptional audio quality, understanding the intricacies of your tube amplifier can make a significant difference. The mastery of tube matching and bias setting is crucial for the peak performance and longevity of your amp.

Matching Tubes and Their Benefits

When you invest in matched tubes for your amplifier, you’re ensuring uniform performance across all power tubes. This not only enhances sound quality by delivering balanced audio output but also extends the overall tube life. Consistency among tubes prevents individual tubes from being overworked and prematurely failing.

The Influence of Bias on Sound Quality and Tube Saturation

Your amp’s bias has a profound impact on sound quality and tube saturation. By adjusting the bias correctly, you optimize the harmonics and distortion characteristics, pivotal for the warmth of tube amplification that’s highly prized. Too much bias can lead to overheating and excess wear, while too little can leave the audio sounding thin and uninspired.

Maintaining Bias for Amplifier Longevity

Regular checks and adjustments of the bias ensure that your power tubes perform optimally over time. This not only preserves the rich, intended sound of your amplifier but also promotes amplifier longevity. Keeping the bias set within the recommended parameters is key to preventing damage and reducing the need for frequent tube replacement.

Advanced Topics in Tube Amp Biasing

When delving into the complexities of tube amp biasing, you will encounter advanced methods and considerations that significantly impact your amplifier’s performance and tonal qualities. Mastery of these topics is essential for any serious audiophile or technician looking to optimize their tube amp.

The Shunt Method for Bias Measurement

The Shunt Method is a precise technique for measuring bias voltage. To perform this, you’ll measure voltage across a known resistor value in your amp’s circuit, typically inserted in the cathode circuit. By applying Ohm’s Law, you can determine the current flowing through the tube. This method provides a direct measurement of current, allowing for accurate adjustment to the optimal bias point which can affect your amp’s power rating and overall tonality.

Exploring Class A and Class AB Amps

Understanding the differences between Class A and Class AB amps is crucial in biasing. Class A amplifiers run their tubes at maximum current at all times, resulting in a rich tone but increased heat and power consumption. In contrast, Class AB amplifiers bias tubes so that they operate jointly, reducing power consumption. The biasing process for each class requires a unique approach to achieve the desired equilibrium between performance and efficiency.

The Role of Capacitor Quality in Amp Bias

The quality of the capacitors in your tube amp can have a profound effect on bias stability. Superior-grade capacitors maintain consistent bias voltage levels and improve the overall sound fidelity of the amplifier. Furthermore, they have higher tolerances to heat and aging, which is vital given the stressful environment of high-voltage tube circuits. When biasing your amp, always consider the capacitor’s voltage rating and construction as it correlates to your tube amp’s stability and longevity.

Legal Disclaimer

adjusting the bias of your tube amplifier, it’s essential to understand that the information provided here is offered as is, without any warranties regarding its accuracy or completeness

When adjusting the bias of your tube amplifier, it’s essential to understand that the information provided here is offered as is, without any warranties regarding its accuracy or completeness. While every effort has been made to ensure that the content is correct and useful for adjusting tube amplifiers, there may be instances of errors or omissions. You are advised to consult a professional if you are unsure about the process.

  • Liability: The creator of this content shall not be held liable for any direct, indirect, incidental, or consequential damages that may arise from your use of or your inability to use the information provided.
  • Non-infringement: There is no guarantee that the usage of mentioned techniques are free of third party rights infringement.
  • Merchantability and Fitness for a Particular Purpose: This content makes no claim about the merchantability or fitness for a particular purpose of the information.
AspectStatement
Accuracy and CompletenessNo warranty is implied.
LiabilityNo liability for damages.
Errors and OmissionsUse at your own risk.
Non-infringement of Third Party RightsProfessional advice recommended.
MerchantabilityNot guaranteed.
Fitness for a Particular PurposeNo fitness implied for specific applications.

It’s your responsibility to ensure that any adjustments you make do not cause damage to your equipment or violate any local laws or manufacturer warranties. Always handle electronic devices with care and consider safety as your top priority.
